Lista modeli
| Udźwig | 4000 kg, 4500 kg, 5000 kg |
|---|---|
| Napęd | Elektryczny |
MOCNY • UNIWERSALNY • INTUICYJNY

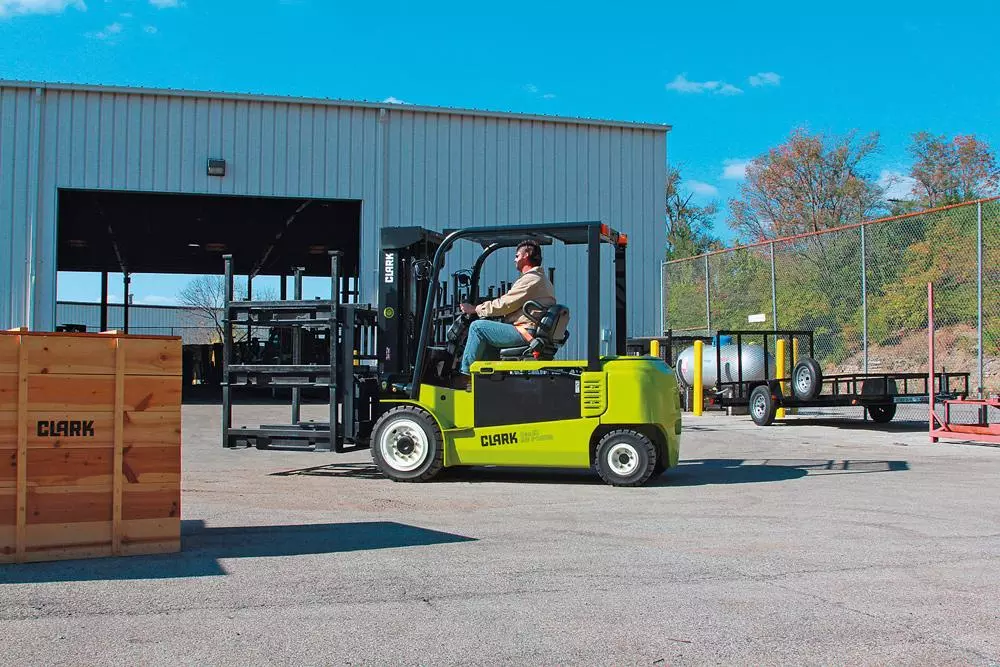

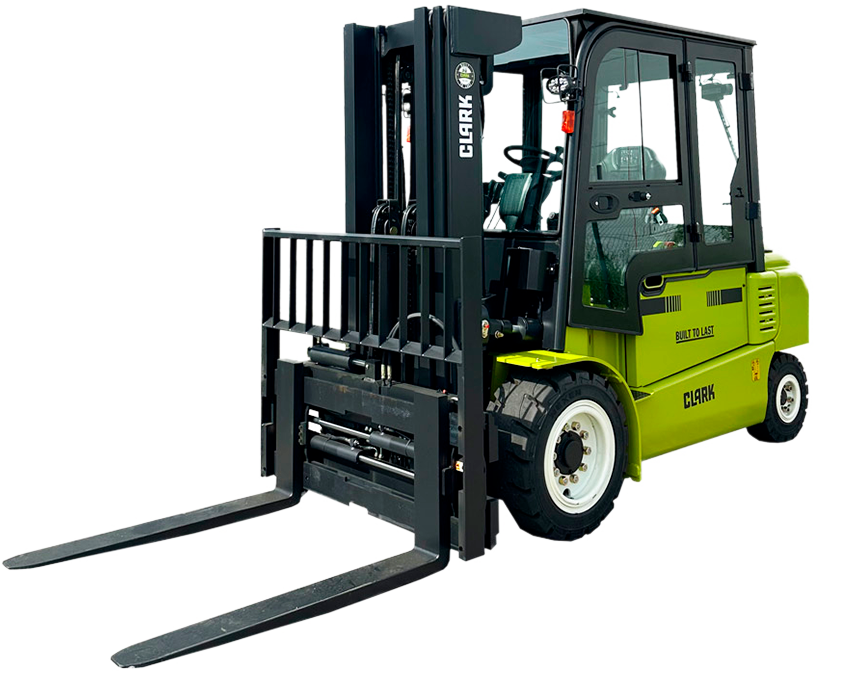

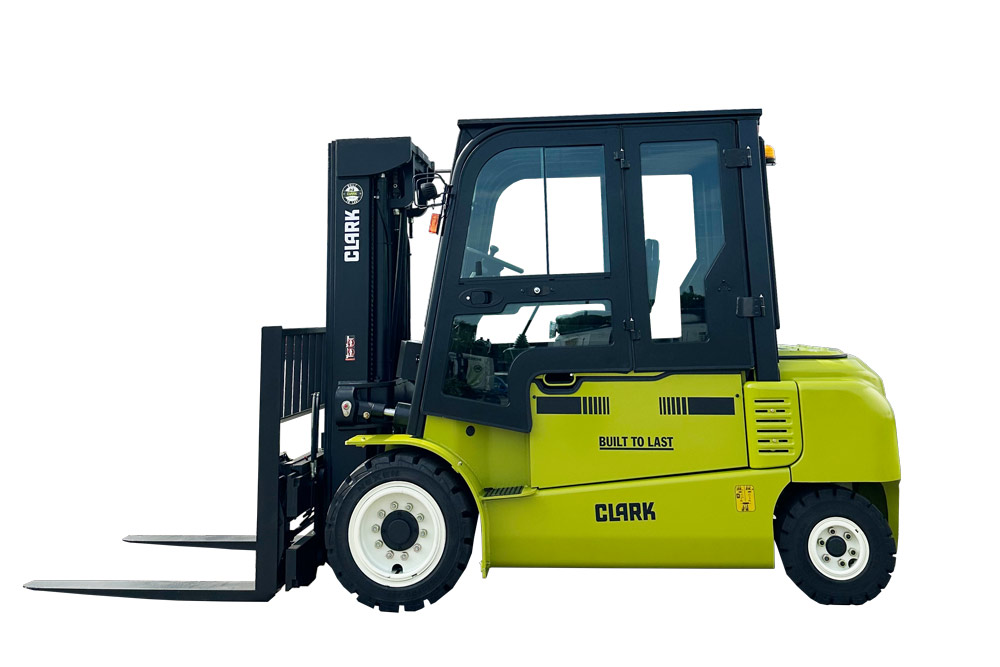

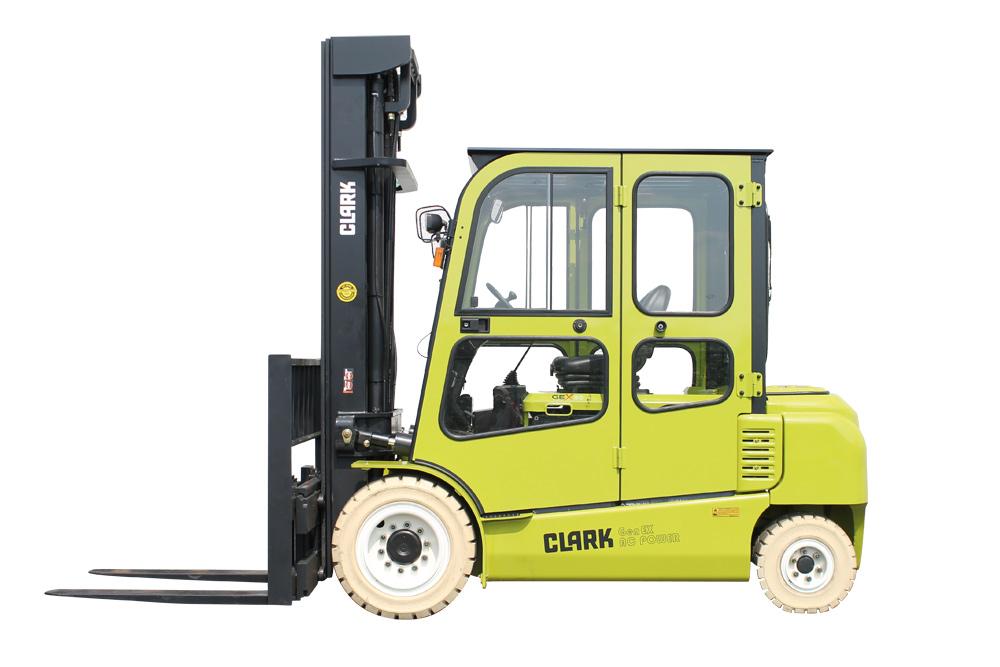

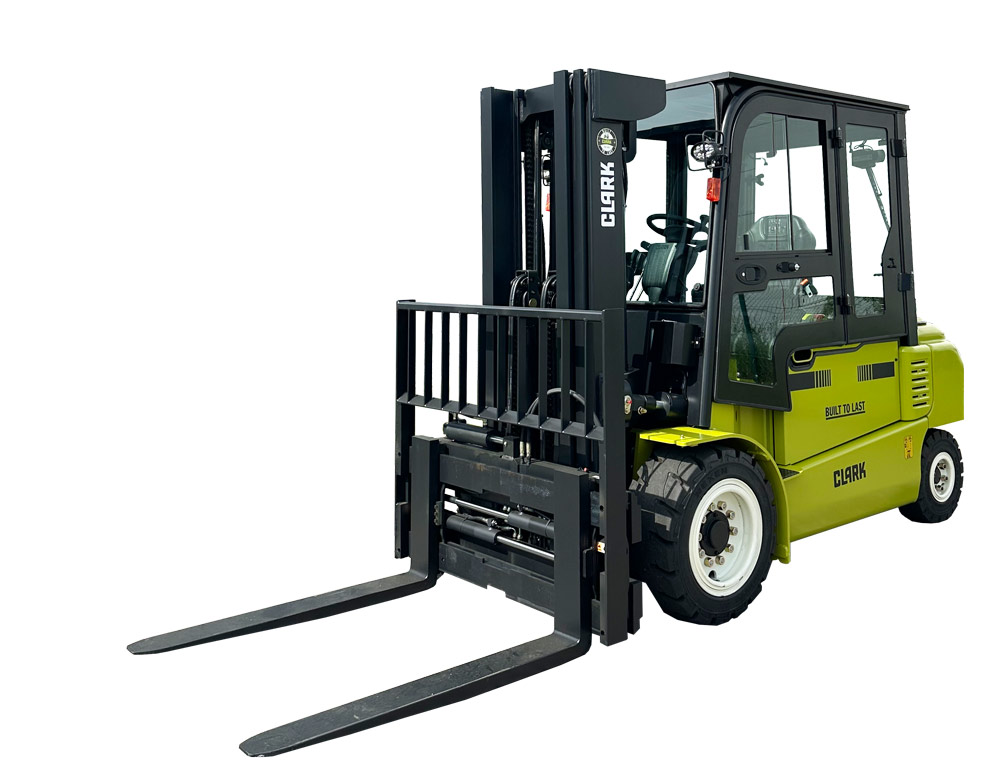

Bezpieczne przemieszczanie ładunków do 5 ton – bez wysiłku. Dzięki podwójnym cylindrom głównym i masztom TRIPLEX każdy operator ma optymalny widok na widły i ładunek. Mocne wózki elektryczne serii GEX40-50 umożliwiają precyzyjne i kontrolowane przemieszczanie ciężkich ładunków z optymalnym rozkładem masy – bez rozpraszania uwagi kierowcy. Operator może w pełni skupić się na pracy, pracując efektywnie i bezpiecznie przez całą zmianę.
MOCNY • UNIWERSALNY • INTUICYJNY
Bezpieczne przemieszczanie ładunków do 5 ton – bez wysiłku. Dzięki podwójnym cylindrom głównym i masztom TRIPLEX każdy operator ma optymalny widok na widły i ładunek. Mocne wózki elektryczne serii GEX40-50 umożliwiają precyzyjne i kontrolowane przemieszczanie ciężkich ładunków z optymalnym rozkładem masy – bez rozpraszania uwagi kierowcy. Operator może w pełni skupić się na pracy, pracując efektywnie i bezpiecznie przez całą zmianę.

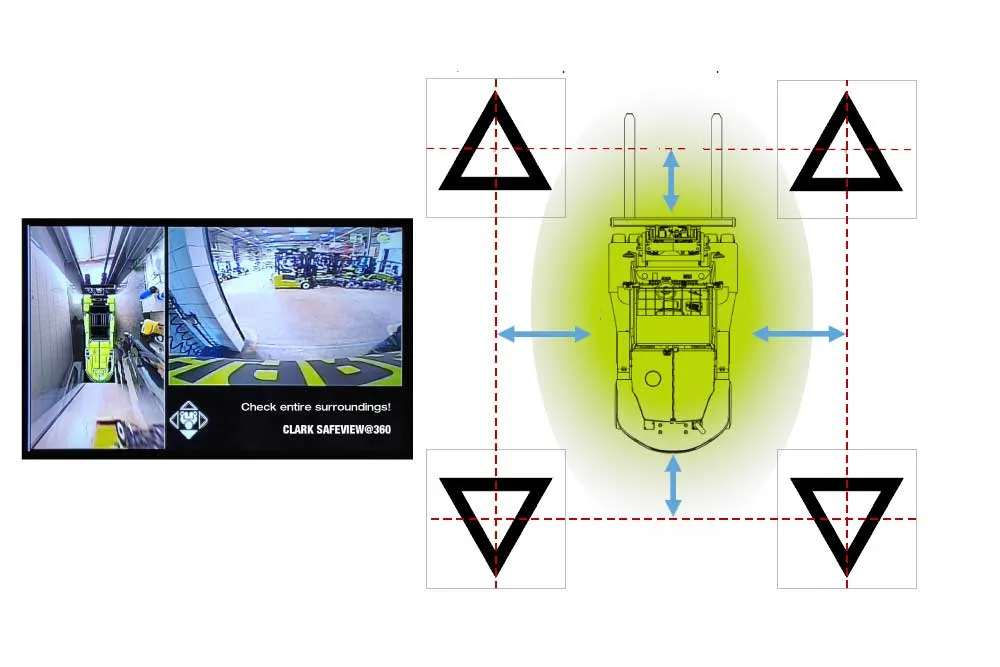

The CLARK SafeView@360 is a 360° camera system, that consists of four digital cameras, which give a complete 360-degree view to the driver. In this way, the driver has a excellent image of his surrounding, which increases safety during operation.
By using digital cameras, it is also possible to generate a view from the bird´s eye perspective. The four individual cameras are used to form a common image in real-time. Especially the fork tips and the counterweight, these are precisely integrated into the seamless image displayed.
Thanks to this perfect all-round visibility the application in narrow or unclear areas can be done more safely and quickly.
Modern lithium-ion technology in perfect combination with cost-efficient trucks and a wide range of additional optional equipment to customize the forklifts is only available from CLARK! It pays to switch to a counterbalance truck with a modern clean energy source. Thanks to ultra-fast charging times and zero maintenance, the lithium-ion forklifts can be used almost without a break. The power of the battery is always fully available, as lithium-ion batteries do not show any signs of fatigue. In addition, the service life of lithium-ion batteries is significantly longer than that of the lead-acid battery.

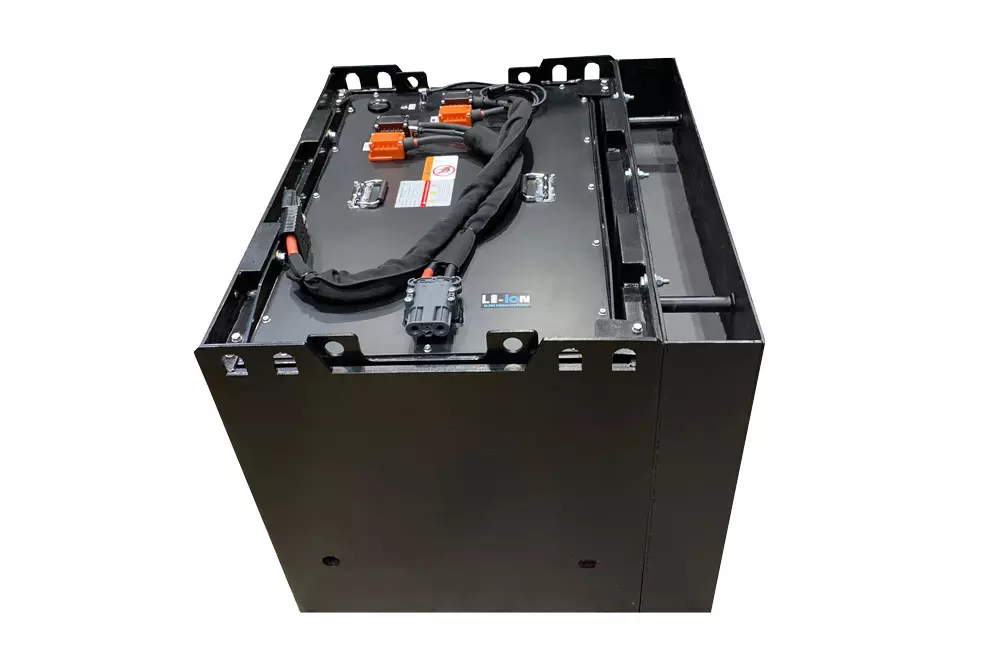

CLARK batteries are based on the safe lithium-ion phosphate technology (LiFePO4). With LiFePO4 batteries, no oxygen is released during the chemical reaction within the cells. This means that there is no risk of spontaneous combustion or explosion of the battery. The battery consequently is very safe. Vehicles with lithium-ion phosphate batteries perform efficiently even in winter at low ambient temperatures and in summer.
The service life of the lithium-ion battery is at least twice as long as the lead-acid battery, up to 2500 charging cycles. Depending on the application, this can be potentially doubled. In light/medium applications, the battery can be used for in excess of 10 years.

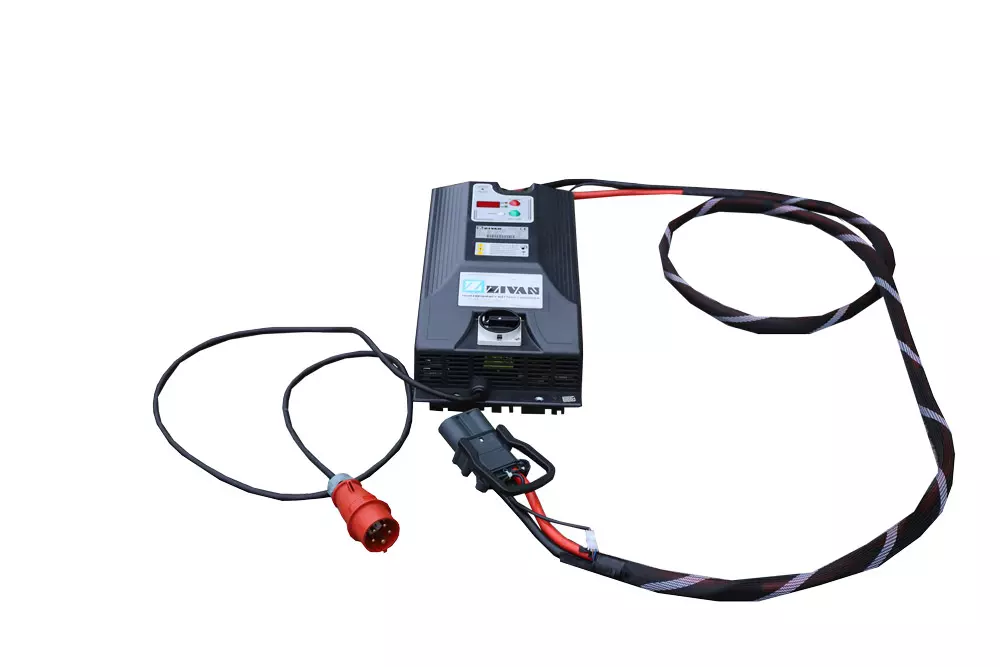

The chargers supplied by CLARK have an extremely stable housing construction with wall bracket for easy mounting. An LED display informs the operator about the battery’s charge status. The connection to the charger is made via a charging cable, which is within easy reach on the vehicle battery.
Intelligent Battery Management System (BMS)

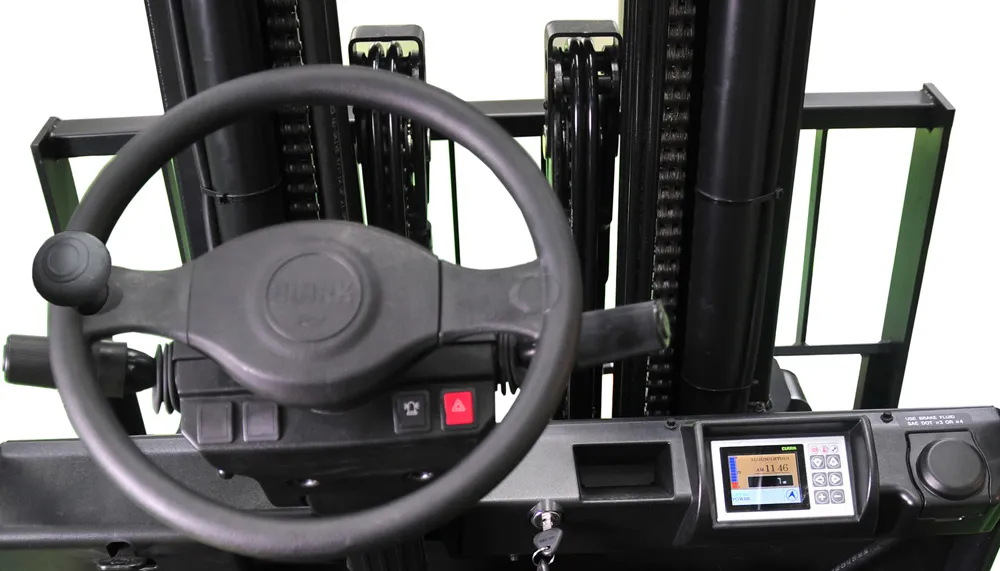

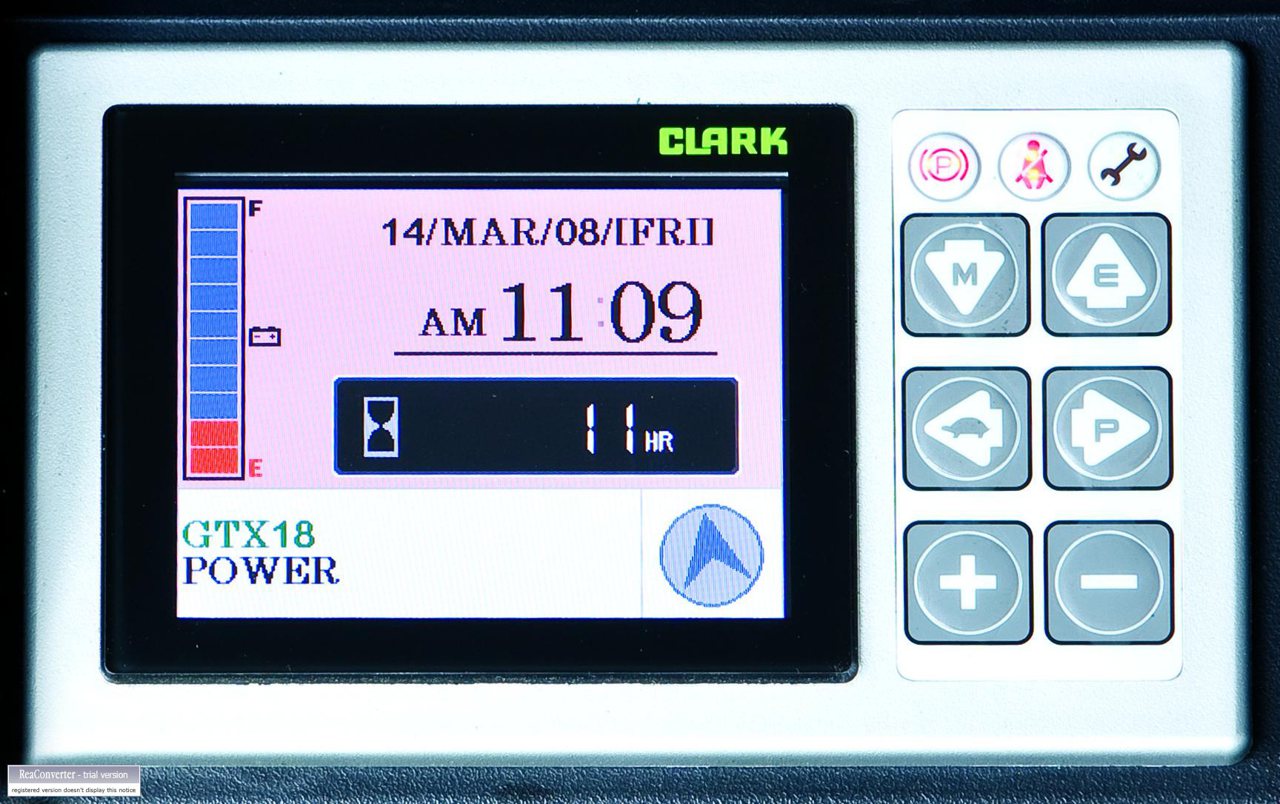

The battery management system in the CLARK Li-Ion batteries communicates with the vehicle and the charger via a CAN bus interface. It informs the operator via display about the state of charge and the remaining runtime. In addition, the intelligent BMS ensures that the Li-Ion battery is neither deep discharged nor overcharged and thus contributes to a long battery life and efficient use of the industrial truck.
The Li-Ion battery can be opportunity charged without any problems, for example during breaks, without loss of capacity or damage to the battery. The battery cover does not have to be opened for this. The driver can connect the plug of the charger to the side of the Li-Ion battery. After only a short time, 50 % of the charge level is available again. Lead-acid batteries lose part of their capacity when not in use, during intermediate charging or when charging is interrupted. The complete charging process for counterbalance trucks with Li-Ion batteries is completed after approx. 3.5 hours, whereas it takes significantly longer for vehicles with lead-acid batteries.

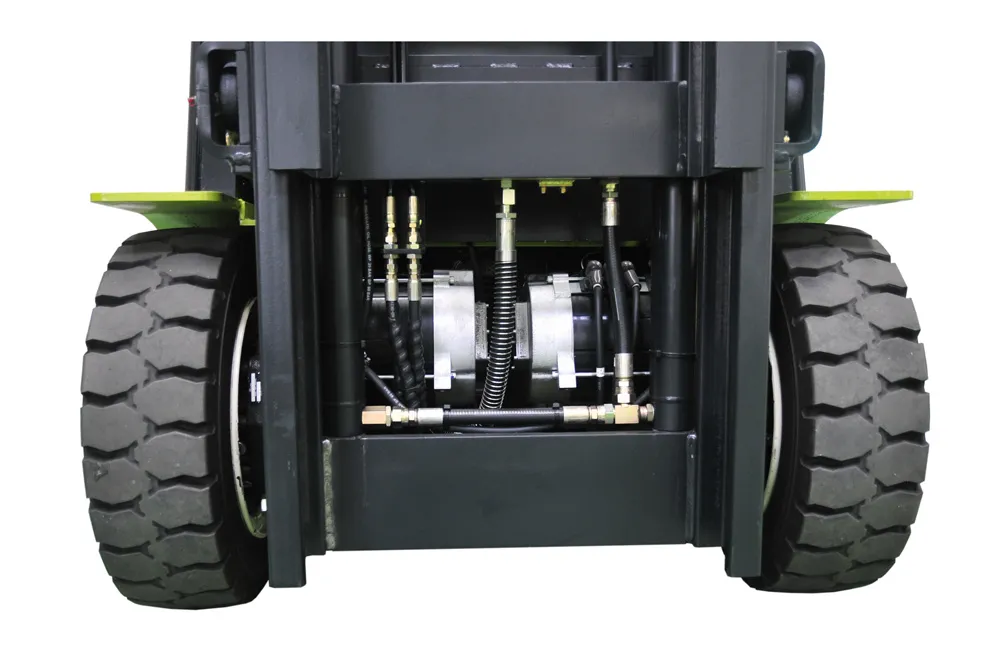

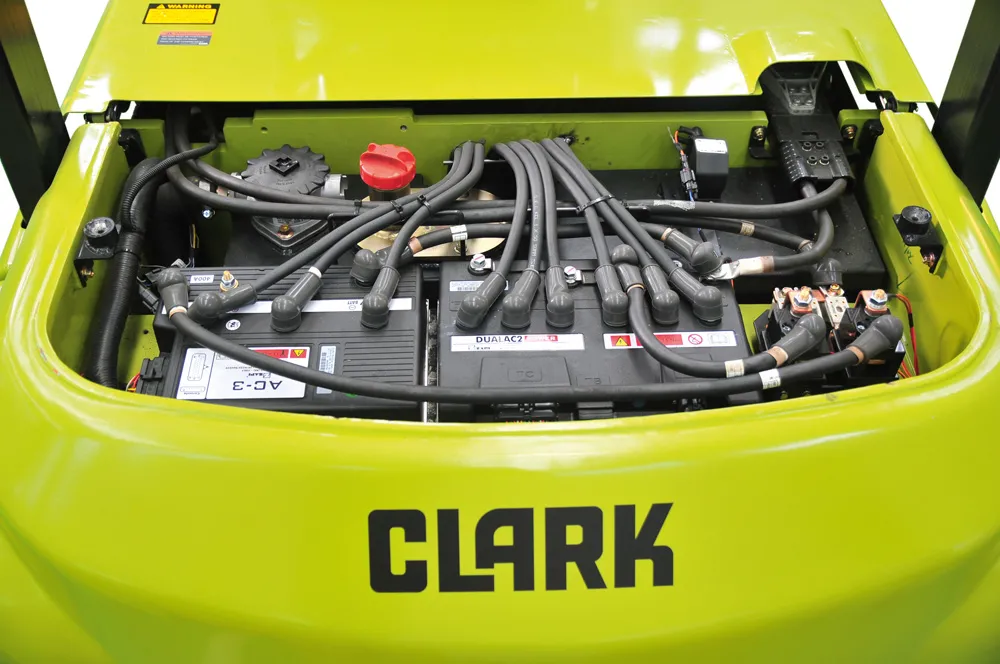

The twin 11.3 kW traction motors with parallel front wheel drive and 80 V three-phase AC technology lead to excellent acceleration and high final travel speed.
When the steering system is operated, the vehicle can be driven with sensitive control due to the parallel front wheel drive
Speed regulation in curves – Automatic deceleration when cornering

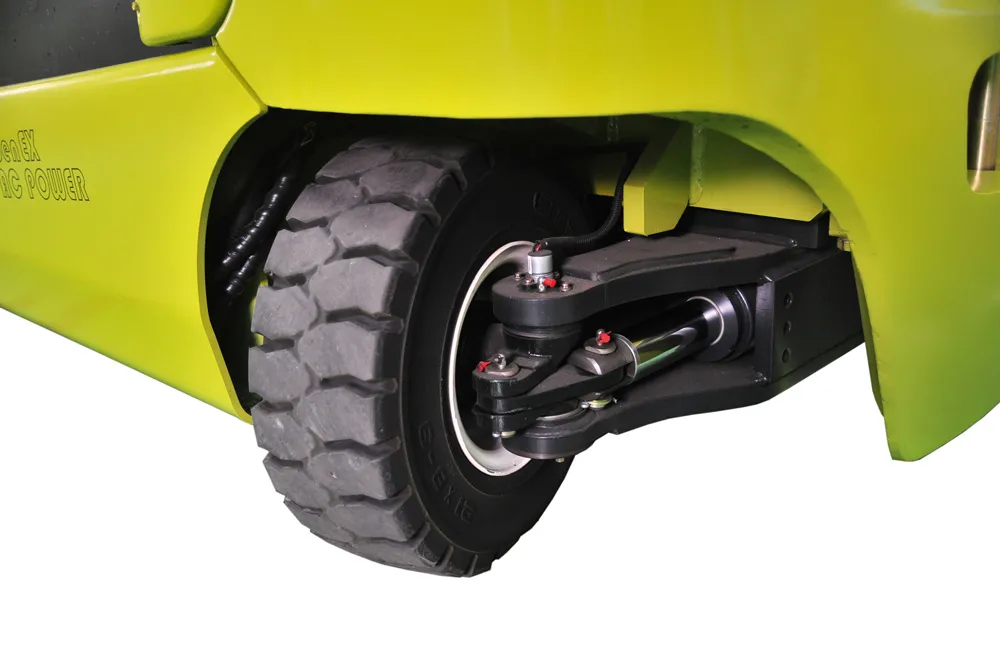

Steering system – Depending on the steering angle, the speed and rotation of the front wheels are controlled such that excessive tyre wear is reduced
